| Model |

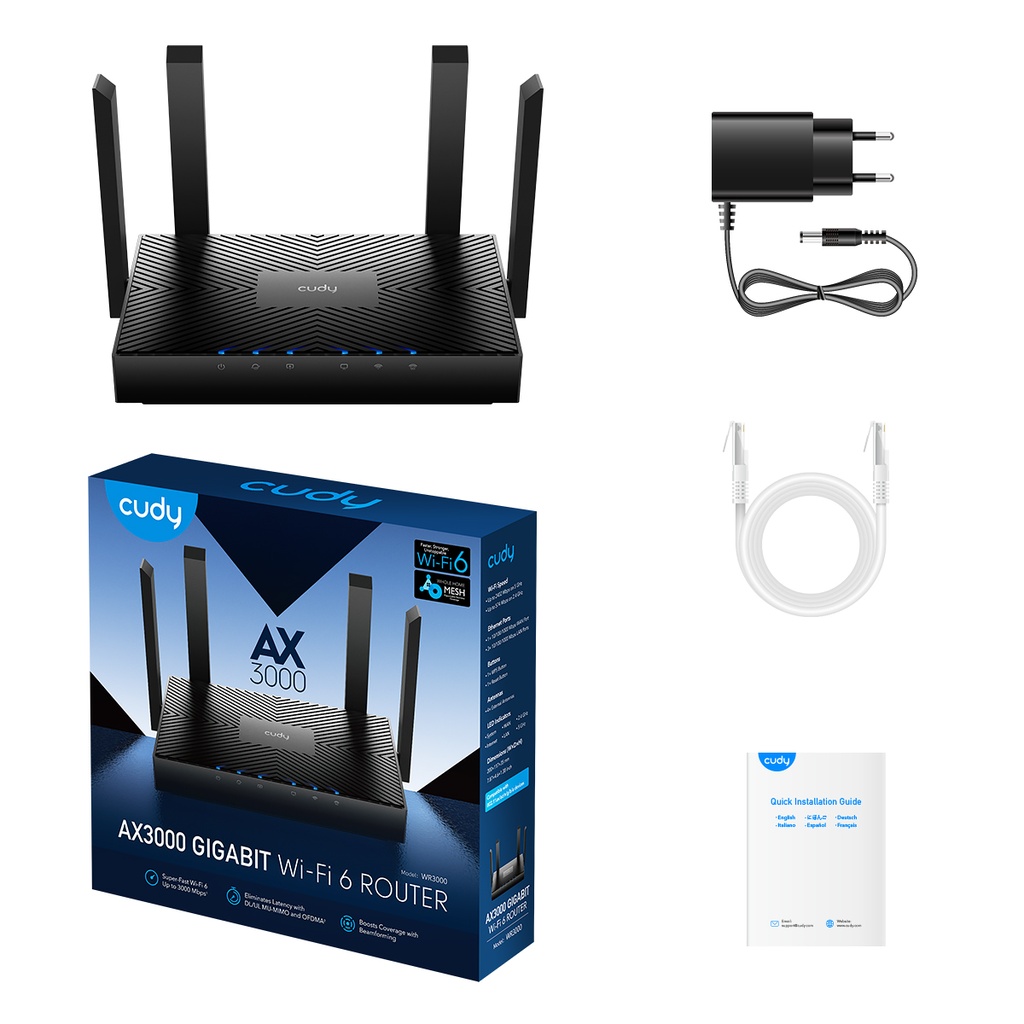

WR3000 |
| Wi-Fi Standards |
IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/b/g (2.4 GHz), Wi-Fi 6 |
| Wi-Fi Speed |
AX3000 Total |
|
5 GHz: Up to 2402 Mbps (160MHz bandwidth, 2×2 MIMO with an Extra Stream for effective 3-stream performance) |
|
2.4 GHz: Up to 574 Mbps (2×2 MIMO) |
| Antennas |
4 × Fixed Omni-Directional Antennas |
| Antenna Gain |
5 GHz Max: 4.8 dBi; 2.4 GHz Max: 3.4 dBi |
| CPU |
1.3 GHz Dual-Core ARM Cortex-A53 (MT7981BA) |
| Memory |
16 MB NOR Flash / 256 MB DDR3 RAM |
| Ethernet Ports |
4 × Gigabit RJ45 Ports (1 WAN, 3 LAN) |
| Mesh Support |
Cudy Mesh (Wireless and Wired Backhaul) |
| Operation Modes |
Wi-Fi Router, Access Point, Range Extender, WISP, Client, Mesh Node |
| Wireless Security |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3-SAE |
| VPN Support |
Client: WireGuard, OpenVPN, IPSec, PPTP, L2TP, ZeroTier |
|
Server: WireGuard, OpenVPN, IPSec, PPTP, L2TP |
| DNS |
DNS over TLS (Cloudflare, Google, Quad9, Custom) |
| OFDMA |
Yes (DL/UL OFDMA) |
| MU-MIMO |
Yes (DL/UL MU-MIMO) |
| Beamforming |
Yes |
| Target Wake Time (TWT) |
Yes |
| Max Connected Devices |
Up to 200 Recommended (Max Capacity 512) |
| Management |
Web UI, Cudy App, TR069 |
| Parental Controls |
Yes (Web Filter, Time Schedules) |
| Guest Network |
Yes (2.4 GHz & 5 GHz) |
| Buttons |
WPS Button, Reset Button |
| Power Supply |
12V / 1A DC Adapter |
| Max Power Consumption |
~7.5W – 11.5W (varies slightly by version) |
| Dimensions (L x W x H) |
Approx. 183.3 × 109 × 35 mm (7.22 × 4.29 × 1.38 inches) |
| Installation |
Desktop, Wall-mount |
| Certifications |
FCC, CE |
