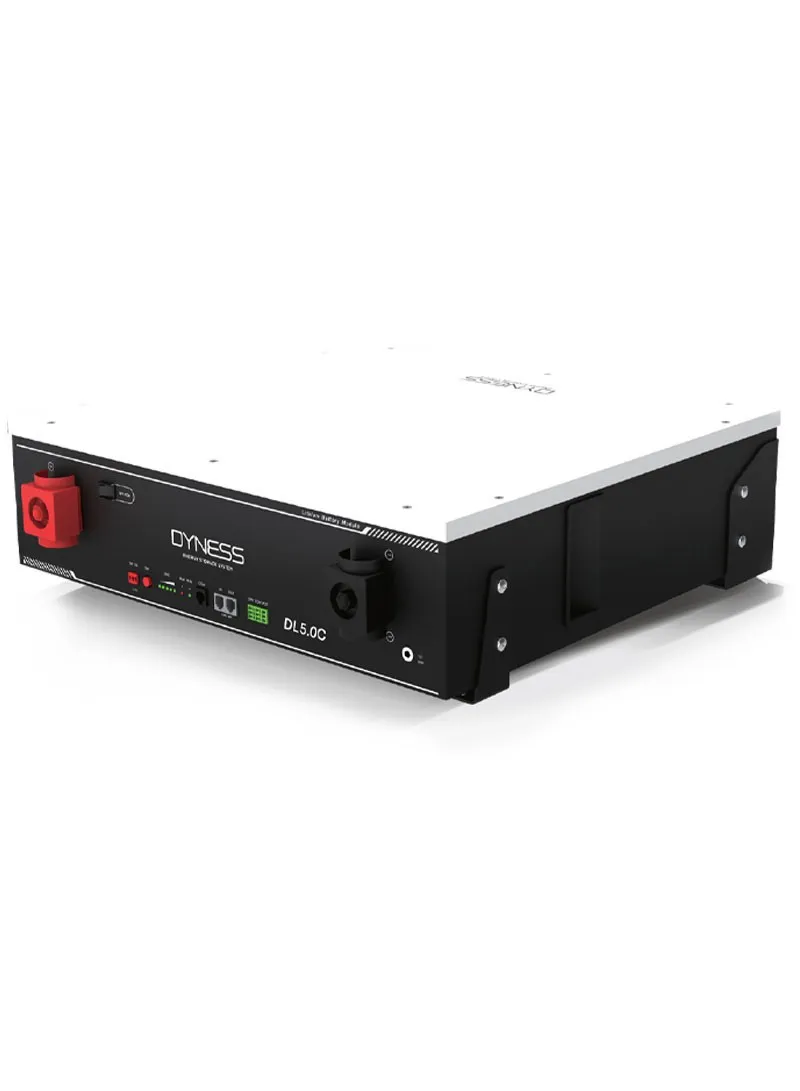

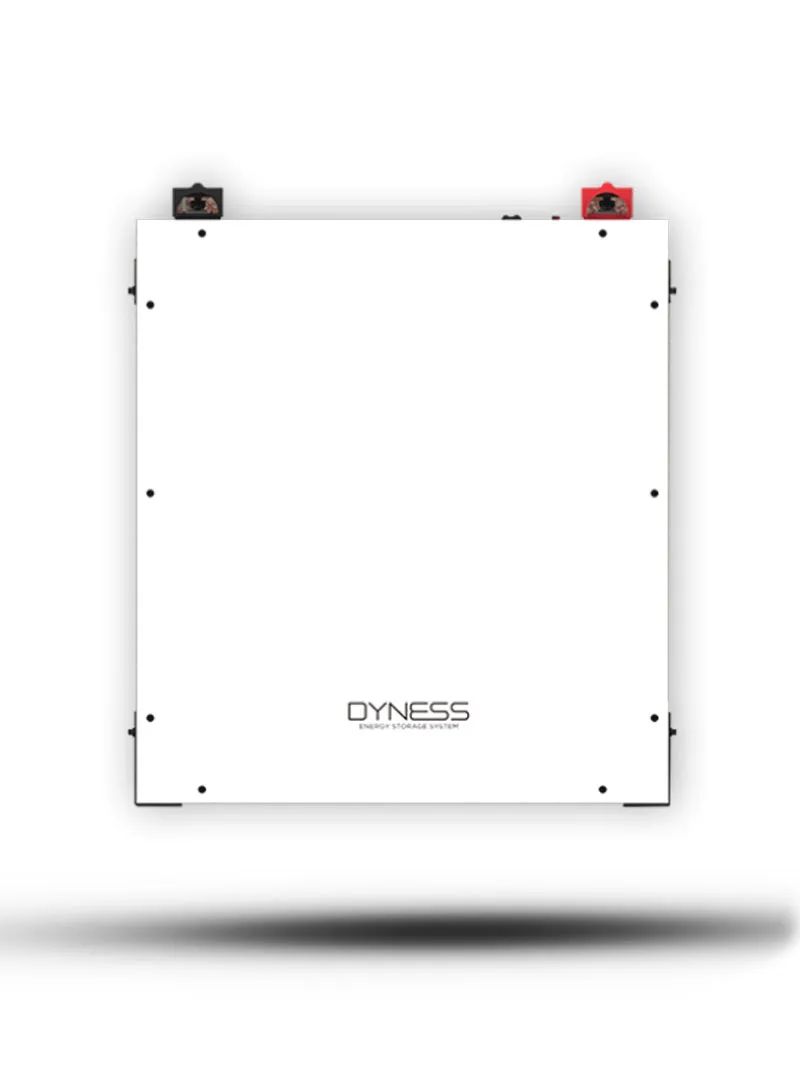

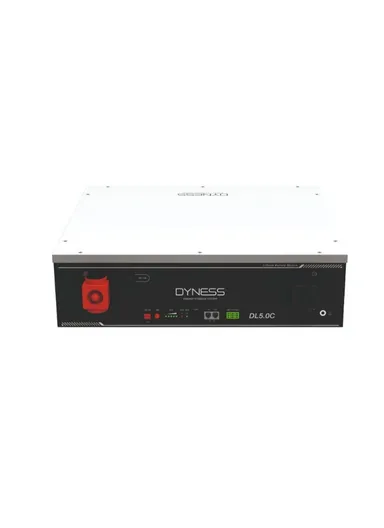

DYNESS 5.12kWh Higher Efficient Lithium Ion Battery 6000 Cycles DL5.0C

1. 5.12kWh Higher Efficient Lithium Ion Battery 6000 Cycles DL5.0C

Features:

• Real-time monitoring and remote upgrades are available
• Wall-mounted, floor-standing, and stacked
• Matching with leading inverters
• Cell level monitoring and balancing
• Dryness DL5.0C adopts economic design and is tailor-made for residential and small commercial application
• This LFP battery module supports remote upgrade and APP monitoring, and provides multiple installation methods
• DYNESS LIBANON

Specifications:

• Brand: Dryness
• Model: DL5.0C
• Battery Type: LiFePO4
• Nominal Battery Energy: 5.12kWh
• Nominal Capacity: 100Ah
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8~57.6V
• Recommended C Rate: 0.5C
• Maximum Discharge C rate: 1C
• Recommend Charge/Discharge Current: 50A
• Max. Power Charge Current: 75A
• Max. Power Discharge Current: 100A
• Peak Power Charge/Discharge Current: 110A (15s)
• Depth of Discharge (DOD): 90%
• Charging Temp. Range: 0~55o C
• Discharging Temp. Range: -20~55OC
• Communication: CAN/RS485/R232
• Cycle Life[1]: ≥6000 Cycles
• Protection Level: lP20
• Expansion: Up to 50 units in parallel
• Pros: Can be used in both off-grid and hybrid setups, compact design
• Certification & Safety Standard: UN38.3/CE-EMC/IEC62619/CEI-021
• Compatible inverters: SMA/Victron/Ingeteam/Delios/Goodwe /Solis/Deye/SAJ/Voltronic/Sungrow, etc.
• Net Weight: 54kg
• Size: (W55.8 x D54.5 x H15)cm

Package Included:

• 1 x Battery
