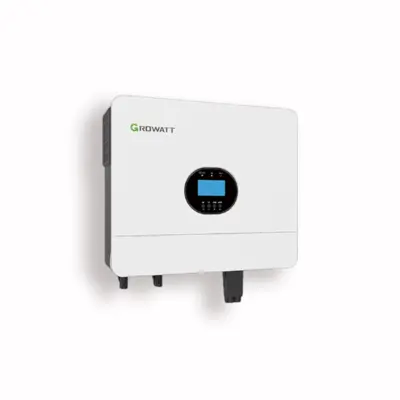

Growatt SPF 6000ES PLUS | OFF-GRID 1-Phase inverter

Features:

• Plug-and-Play terminal for PV port
• Dual MPP trackers
• Maximum PV input voltage up to 500VDC
• Configurable grid or solar input priority
• Parallel for scalability
• Dust-proof filter for harsh environment
• Two AC input terminals with integrated transfer switch

Specifications:

• Brand: Growatt
• Model: SPF 6000ESPlus
• Battery Voltage: 48VDC
• Battery Type: Lithium/Lead-acid
• Rated Power: 6000VA/6000W
• Parallel Capability: Yes, 6 units maximum
• AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
• Surge Power: 12000VA
• Efficiency (Peak): 93%
• Waveform: Pure sine wave
• Transfer Time: 10ms typical，20ms Max
• Maximum PV Array Power: 8000W
• MPPT Range @ Operating Voltage :120VDC ~ 450VDC
• Number of Independent MPP Trackers/ Strings Per MPP Tracker: 2/1
• Max. input current per MPP tracker: 16A
• Maximum PV Array Open Circuit Voltage: 500VDC
• Maximum Solar Charge Current:100A
• Charge Current: 80A
• AC Input Voltage: 230VAC
• Selectable Voltage Range: 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
• Frequency Range: 50Hz/60Hz (Auto sensing)
• Protection Degree: IP20
• Humidity: 5% to 95% Relative Humidity(Non-condensing)
• Altitude <2000m
• Operating Temperature: 0°C – 55°C
• Storage Temperature: -15°C – 60°C
• Net Weight (kgs): 13.5kg
• Size :(W46 x H39.5 x D13.2)cm

Package Included:

• • 1 x Power Inverter
