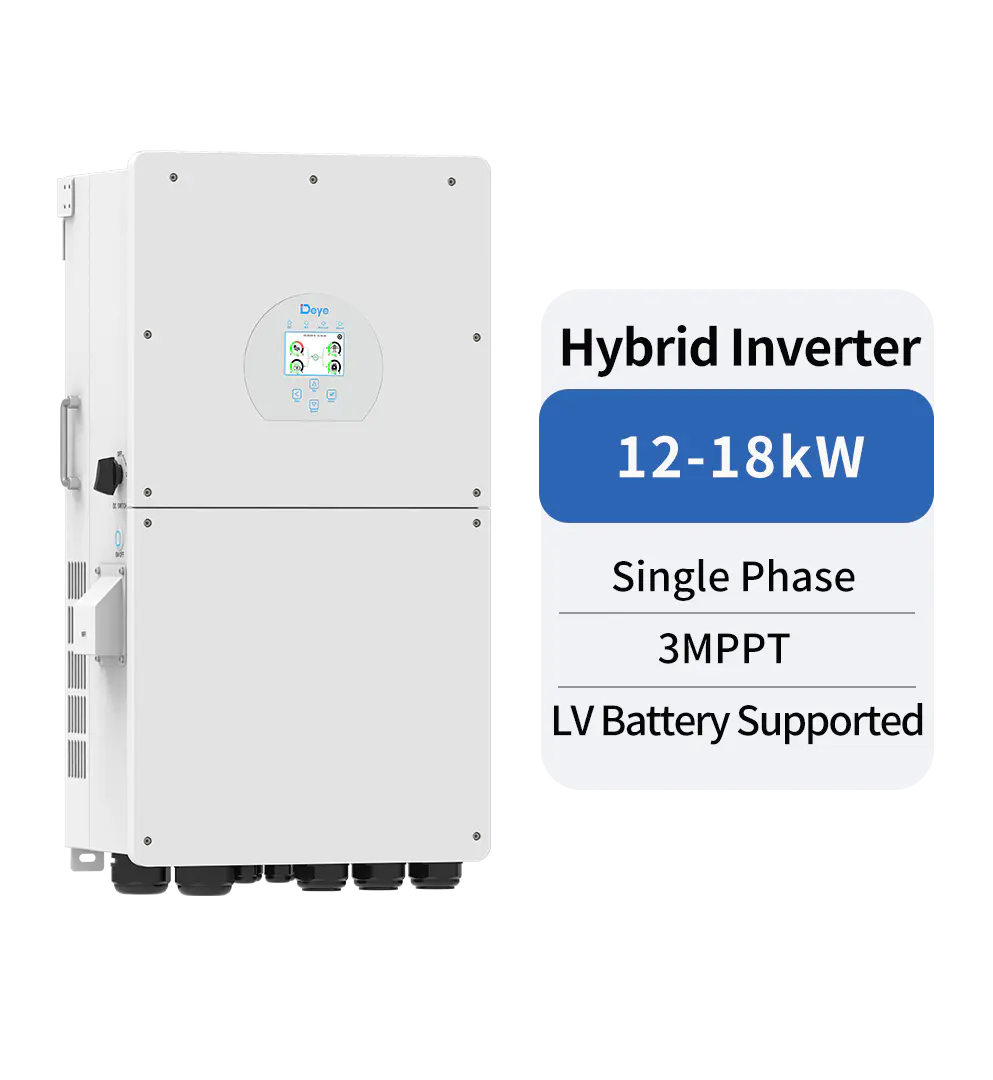

Deye Hybrid On-Off Grid SG01LP1 18KW 48V 3MPPT

The Deye 18KW Hybrid Inverter is a powerful single-phase solution for residential and light commercial solar energy systems. It combines solar production, battery storage, grid power, and backup energy in one intelligent system.

The SUN-18K-SG01LP1-EU-AM3-P supports 40–60V low-voltage batteries, including lithium-ion and lead-acid batteries. In addition, its three MPPT trackers provide flexible solar panel configuration and efficient energy production.

Powerful Solar Performance

The inverter delivers 18,000W rated AC output and supports up to 28,800W maximum PV input power. Moreover, its maximum efficiency reaches 97.6%, while MPPT efficiency is above 99%.

Key Features

• 18KW Single-Phase Hybrid Inverter
• 48V Low-Voltage Battery Support
• Lithium-Ion & Lead-Acid Compatibility
• 3 MPPT Trackers
• 2+2+2 PV String Configuration
• Up to 28.8KW PV Input Power
• 97.6% Maximum Efficiency
• WiFi, RS485 & CAN Communication
• IP65 Protection
• Smart Load Function
• Generator Energy Storage Support
• On-Grid & Off-Grid Operation
• Up to 16 Units in Parallel

Smart Energy Management

The system provides six programmable periods for battery charging and discharging. Furthermore, it supports energy storage from a diesel generator and AC coupling for existing solar installations.

As a result, users can manage solar production, battery storage, and grid electricity more efficiently. Smart monitoring also makes system control and performance tracking easier.

The Deye 18KW Hybrid Inverter is an excellent choice for customers who need high solar capacity, flexible battery storage, and dependable backup power.
