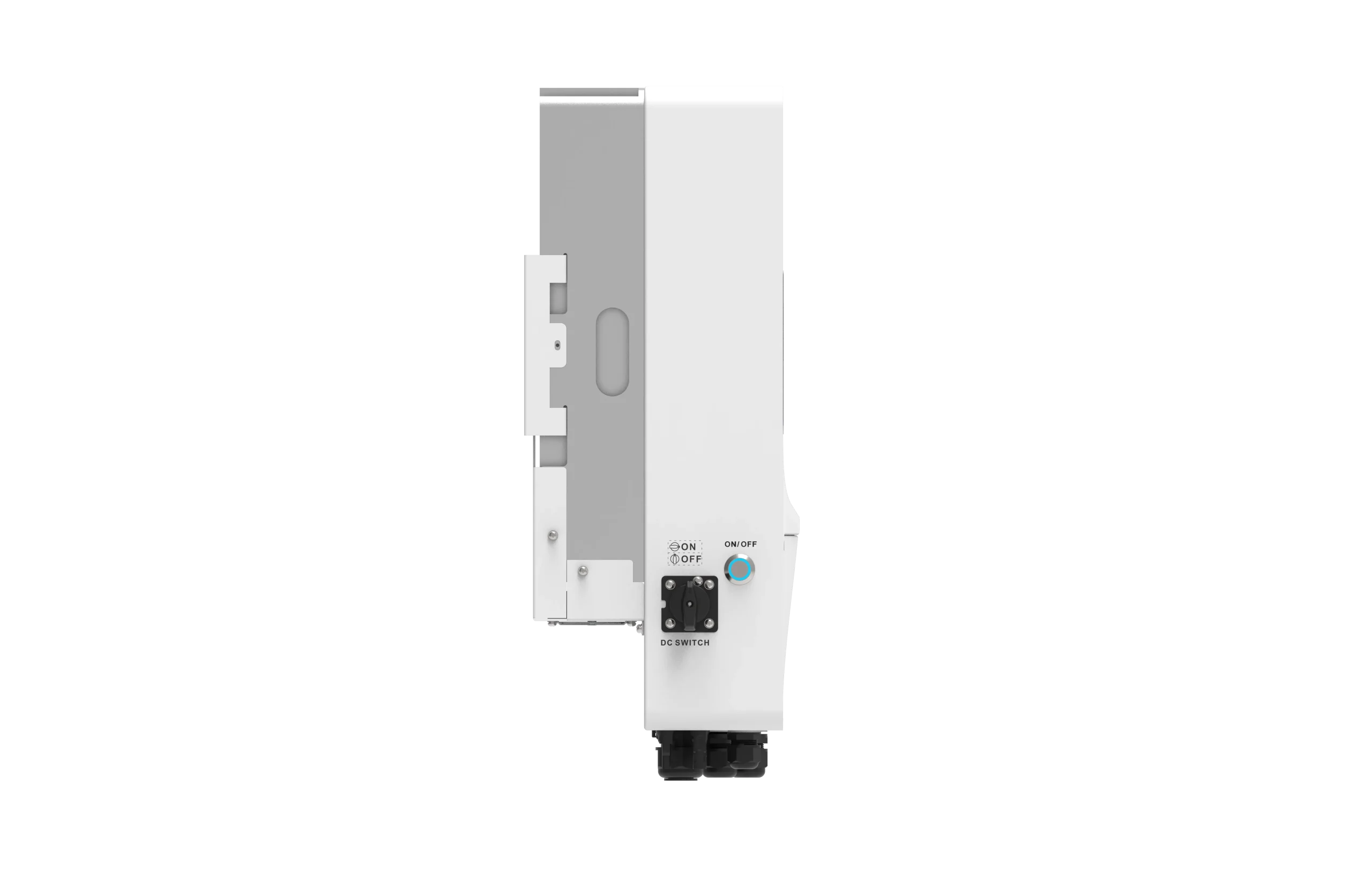

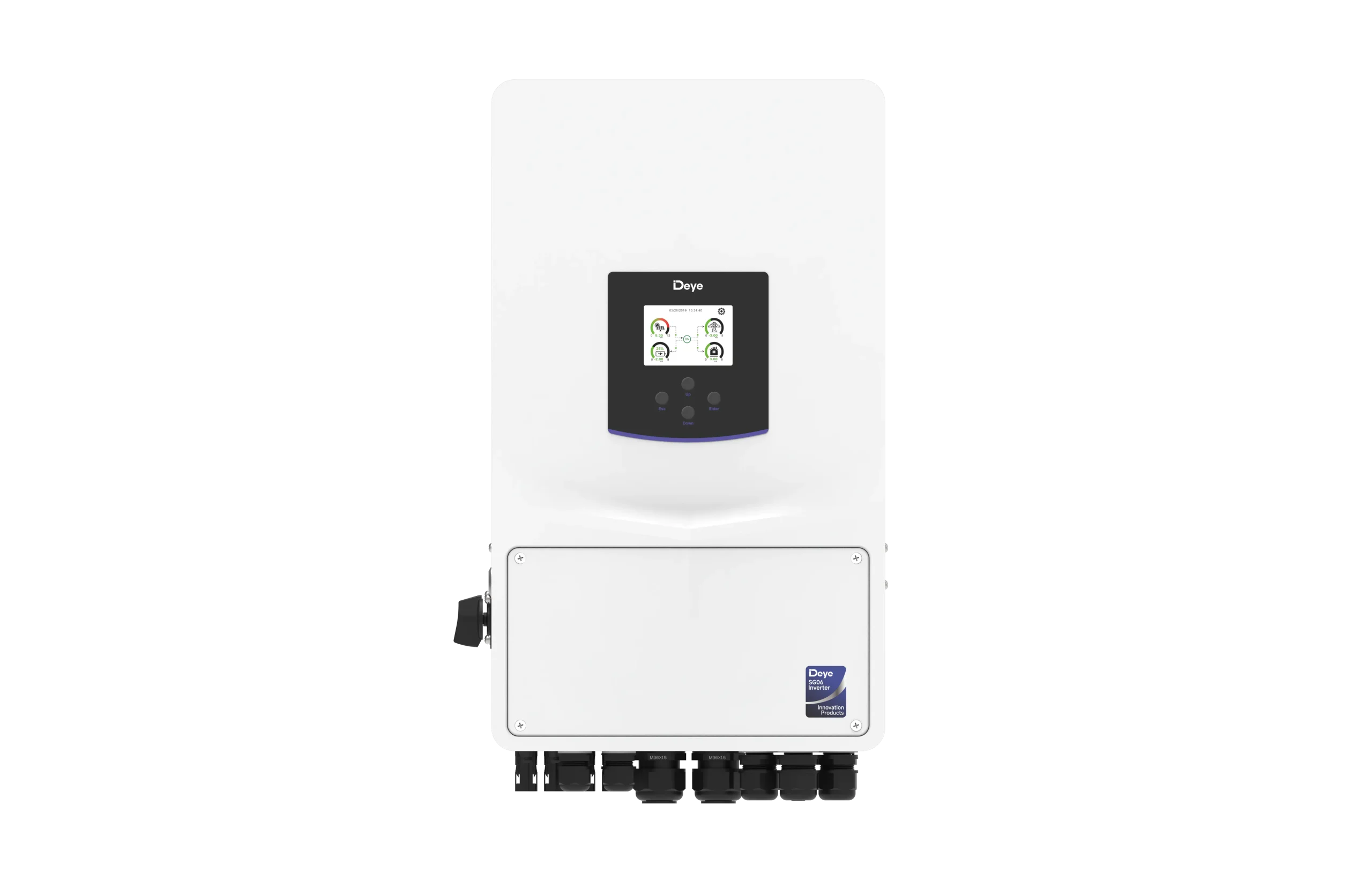

Deye SUN-8K-SG06LP1-EU-CM3 8KW 48V 3MPPT Hybrid Inverter

The Deye 8KW 3MPPT Hybrid Inverter is a powerful energy solution for residential and light commercial solar systems. The SUN-8K-SG06LP1-EU-CM3 combines solar production, battery storage, grid power, and backup energy in one intelligent system.

The inverter supports 40–60V low-voltage batteries, including lithium-ion and lead-acid batteries. Moreover, it provides up to 185A charging and discharging current for efficient energy storage.

Deye 8KW 3MPPT Hybrid Inverter Features

The inverter features 3 MPPT trackers with a 2+1+1 string configuration. Therefore, solar panels with different orientations can be managed more efficiently.

In addition, the inverter supports up to 16,000W PV access power and 12,800W maximum PV input power. Its maximum conversion efficiency reaches 97.6%, while MPPT efficiency exceeds 99%.

Key Features

• 8KW Single-Phase Hybrid Inverter
• 48V Low-Voltage Battery System
• Lithium-Ion & Lead-Acid Battery Support
• 3 MPPT Trackers
• 2+1+1 PV String Configuration
• 185A Maximum Charge/Discharge Current
• 12.8KW Maximum PV Input Power
• 97.6% Maximum Efficiency
• WiFi, RS485 & CAN Communication
• IP65 Protection
• Generator Energy Storage Support
• On-Grid & Off-Grid Operation
• Parallel Operation Support

Smart Solar Energy Management

The inverter intelligently manages solar production, battery storage, and grid electricity. Furthermore, it supports six programmable battery charging and discharging periods.

The system can also store energy from a diesel generator. As a result, users can maintain a more reliable power supply during grid outages.

The Deye 8KW 3MPPT Hybrid Inverter is an excellent choice for customers looking for flexible solar production, intelligent battery management, and dependable backup power.
